ON STOCK
More than 1600 meters of ballscrews and
1300 ballscrew nuts from Ø6 do Ø63 in brand
- FLI has a wide range of rolled ballscrews to be able to provide adequate system for the linear movement.
- Today, FLI has a large stock of ballscrews :
- Precision rolled class C7 (53 μ m / 300 mm) according to DIN 69051. All the C7 class are on stock.
- FLI can also provide live high precision ballscrews Class C5 (18 μ m / 300 mm) with a deadline for manufacturing 30 to 40 days, depending on the workload of the plant. However, in order to optimize the delivery time, we do have some class C5 in stock.
- All the ballscrews are provided in standard lenght, cut and machining..

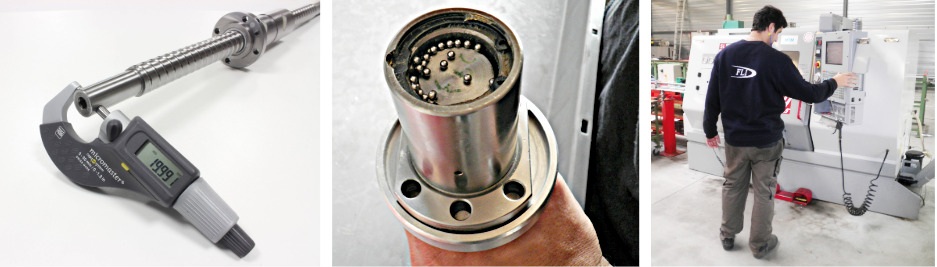

Machining and support :
Find the machining tables and also all the support for ballscrews and nut on in our pdf catalogues.
We can also offer ground ballscrews (right / left, stainless steel screws, special nuts …) according to customer, in this case our services are available to confirm the feasibility.
SH – SD
Miniature nut
Ø6×2 @ 16×10 mm
SHS – SDS – Staiunless steel
Miniature nut
Ø6×2 @ 16×5 mm
SX
Thread nut
Ø20×5 @ Ø63×10 mm
SND – Selon DIN 69051
Precision nut
Ø16×5 @ Ø63×10 mm
SL
Cylindrical flange nut
Ø16×5 @ Ø63×10 mm
SN
Long pitch nut
Ø25×20 @ Ø50×50 mm
Ball screw on production
=> Special nuts
=> Ø et special pitch
=> Right / left ballscrews
SFNUR – Selon DIN69051
Standard nut – 5 and 10 mm pitch
Preload possible – Option P2
SFNUR-LC – Selon DIN69051
Anti-corrosion nut and ball screw
SFAR – Selon DIN69051
Long pitch nut
Preload possible – Option P2
OFUR – Selon DIN69051
Nut with preload by pitch offset
SFNUL – Selon DIN69051
Standard left-hand nut
5 and 10 mm pitch
BSHR
Miniature nut
Ø8×2.5 @ 25×10 mm
SFKR
Miniature nut
Ø6×1 @ 14×2 mm
SFYR
Long pitch nut
From Ø16×16 to Ø50×100 mm

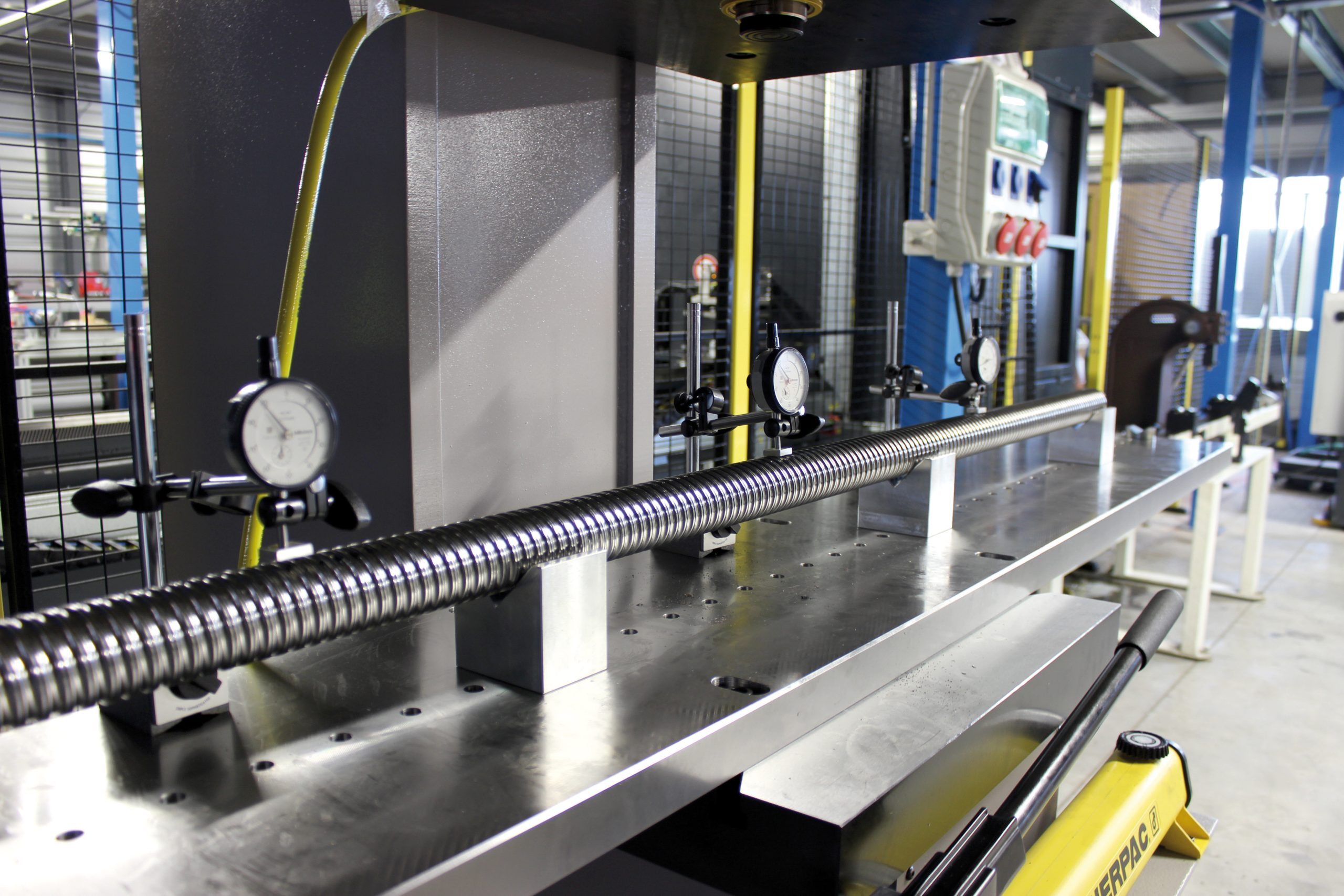

Straightness control
Before and after machining
Torque control
Ball screws and ball nuts
According to ISO 3408-3
Machining control
Preload modification
Anticorrosion treatment
Obtain information via our form: CLICK HERE
An expert will take care of your request in order to best respond to this product.
